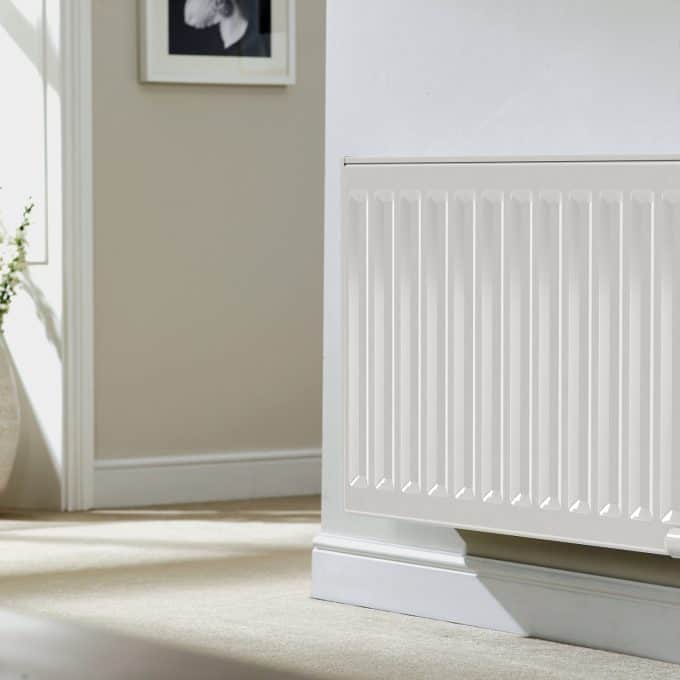

Digi-line Electric Radiators
Designed and manufactured in Britain, The number one choice for clients looking for their heaters to look like traditional radiators. The radiators are filled with a thermal fluid and transfer heat to the whole of the surface area without the need for any pumps or moving parts. The fluid is heated by 100% efficient electric elements which are controlled by the most advanced thermostat electronics available. The radiator body is constructed in steel and powder coated to ensure a high quality, extremely long lasting and robust finish. The range is available in 500mm & 300mm heights and power ratings from 500 watts to 2000 watts. Single panel and double panel radiators are available and both have convection fins to ensure the perfect balance of radiant and convected heat.
Range
White RAL 9016
Specifications
Element & controls
Digi-Line electric radiators have some very unique and energy saving features built in to the electronics. All features do not have to be used but can be activated if required.
1. Energy saving open window feature – this senses when a window has been opened and stops the radiator heating until the window is closed.
2. Surface temperature control – The surface temperature can be operated at the full 90 deg C or reduced to a maximum of 75 deg C or a maximum of 60 deg C. (Surface temperature reduction will reduce the heating power)
3. Double panel radiator smart control – If the room temperature is within 1 deg C of the set point, only the front panel will operate. If the room temperature is more than 1 deg C from the set point, the back panel will also operate to act as a boost and re-heat the room faster.
The Digi-Line thermostat is a double proportional band control (PI & PWM) giving the best accuracy possible of +/- 0.1 deg C. The room temperature is sensed below the radiator where the room air temperature is at its lowest and there is no heat from the radiator to affect the reading. Each radiator thermostat also has a radio frequency receiver built in, so central control is easy to achieve by using the optional 4 zone radio frequency central programmer or TouchE3 control hub. The touchE3 can also be used via the APP using a smart phone or tablet.
Dimensions & Power
| Model | Output | Height mm | Length mm | Depth mm |
| DE50DX125 large double | 2000 | 500 | 1250 | |
| DE50SC55 | 500 | 500 | 550 | |
| DE50SC13 | 1300 | 500 | 1300 | |
| TouchE3 Control | ||||
| RF programmer | ||||
| Single Panel Radiators | ||||
| DE50SC55 | 500 | 500 | 550 | 60 |
| DE50SC80 | 750 | 500 | 800 | 60 |
| DE50SC105 | 1000 | 500 | 1050 | 60 |
| DE50SC130 | 1250 | 500 | 1300 | 60 |
| DE30SC40 | 250 | 300 | 400 | 60 |
| DE30SC80 | 500 | 300 | 800 | 60 |
| DE30SC110 | 750 | 300 | 1100 | 60 |
| DE30SC150 | 1000 | 300 | 1500 | 60 |
| Double Panel Radiators | ||||
| DE50DX40 | 500 | 500 | 400 | 80 |
| DE50DX50 | 750 | 500 | 500 | 80 |
| DE50DX65 | 1000 | 500 | 650 | 80 |
| DE50DX80 | 1250 | 500 | 800 | 80 |
| DE50DX95 | 1500 | 500 | 950 | 80 |
| DE50DX125 | 2000 | 500 | 1250 | 80 |
| DE30DX50 | 500 | 300 | 500 | 80 |
| DE30DX80 | 750 | 300 | 800 | 80 |
| DE30DX100 | 1000 | 300 | 1000 | 80 |
| DE30DX130 | 1250 | 300 | 1300 | 80 |
| DE30DX160 | 1500 | 300 | 1600 | 80 |
| DE30DX200 | 2000 | 300 | 2000 | 80 |
Availability & Lead times
Usually available in 3-5 days
